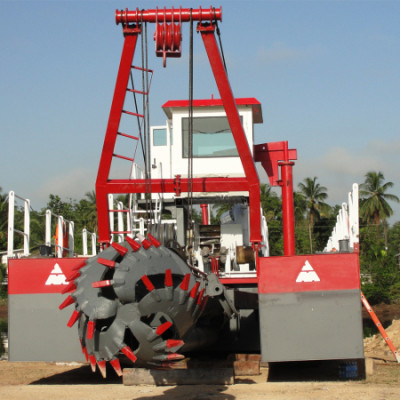

Mini Portable Small Dredger Cutter Head Dredging Machine
Product Specifications
| Attribute | Value |
| Name | Cutter head dredging small dredger |
| Type | Cutter suction small dredger |
| Pump capacity | 100-150 cubic meters/hour |
| Fuel type | Diesel |
| Material | Marine Steel |
| Fuel consumption | 24 liters/hour |
| Suction pipe diameter | 12 inches |
| Discharge distance | 800 meters |
| Cutter head diameter | 9 meter |
| Dredging depth | 6 meters |
Manufacturer Overview
Weifang Jin Meng Dredger Co., Ltd. is a specialized manufacturer of small and medium-sized cutter suction dredgers, located in Qingzhou, Weifang City, Shandong Province, China. The company is recognized for its technical expertise, high-quality dredging equipment, and excellent after-sales service.
Our products are distributed across China and exported to numerous countries including India, Iran, Oman, UAE, Argentina, Colombia, Saudi Arabia, Bangladesh, Egypt, Nigeria, Mongolia, and Russia.
Quality Assurance
Our dredgers are designed, constructed, and quality inspected according to CCS (China Classification Society) standards and regulations:
- Steel plates meet CCSB plate requirements
- Welders are CCS-certified and highly experienced
- Marine-grade anti-corrosion paints used
- Diesel engine installation concentricity < 0.05mm
Premium Components
Cummins/MITSUBISHI Diesel Engines Kingda Dredging Pumps (Warman Tech) Hangzhou Qianjin Gearboxes Rexroth Hydraulic Systems SIEMENS PLC Controls NSK Bearings (Japan) Parker Sealings (USA)
Technical Specifications
| Component | Specification |
| Dredging Pump | 250mm discharge pipe, 35m head, 120m³/h capacity |
| Diesel Engine | 150KW YUCHAI |
| Generator | 10KW WEICHAI |
| Total Power | 160KW |
| Fuel Consumption | 24L/H |
| Hull Dimensions | 16m × 4.72m × 1.26m (LOA × W × D) |
| Hydraulic System | VICKERS pump, SAI motor, REXROTH valves |
| Control System | SIEMENS PLC (Germany) |
| Cutter Head | Φ900mm crown-like, 30KW power |
Product Features
- Hydraulic-controlled cutter suction dredger
- Ideal for river channel, canal, and water storage dredging
- Modular three-pontoon design for easy assembly
- Dismountable operator cabin for bridge clearance
- Transportable by truck or train when disassembled
- Anchor casting pole and trolley compatible
- Advanced lub oil and sealing system for cutter drive
Product Gallery
Our manufacturing facility
Transportation by trucks
JMD250 Cutter Head Dredging Small Dredger in operation
Assembly process
Assembly installation
Contact Us
We welcome visits to our factory for detailed product demonstrations and discussions about your specific dredging requirements.
